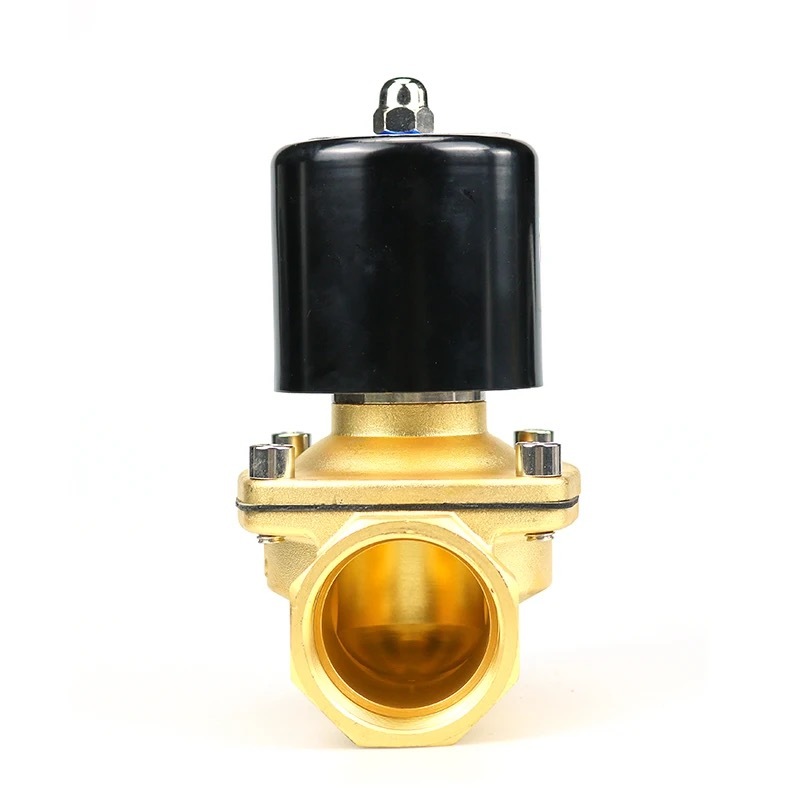

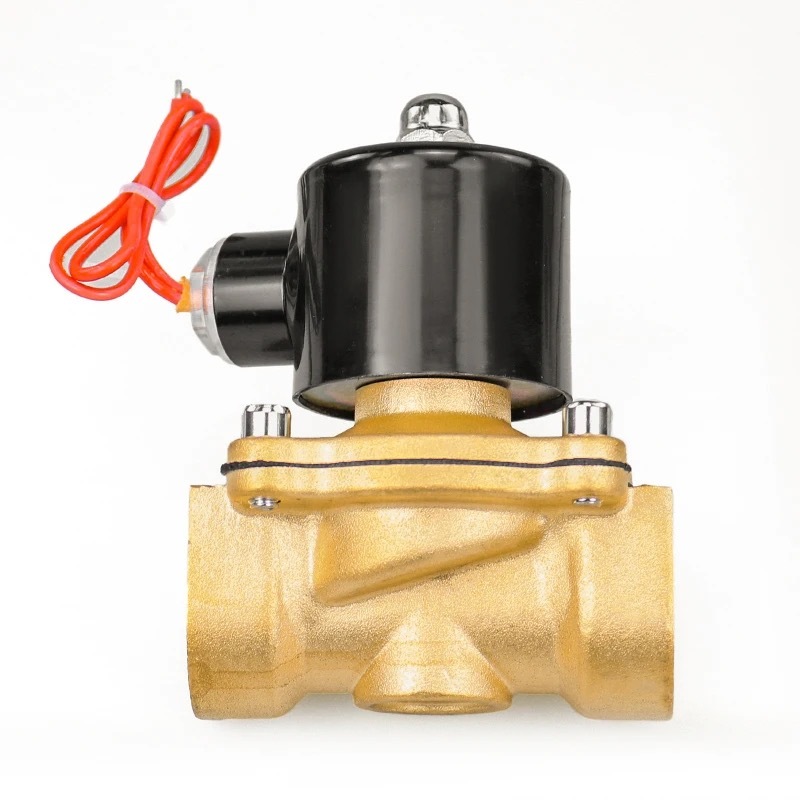

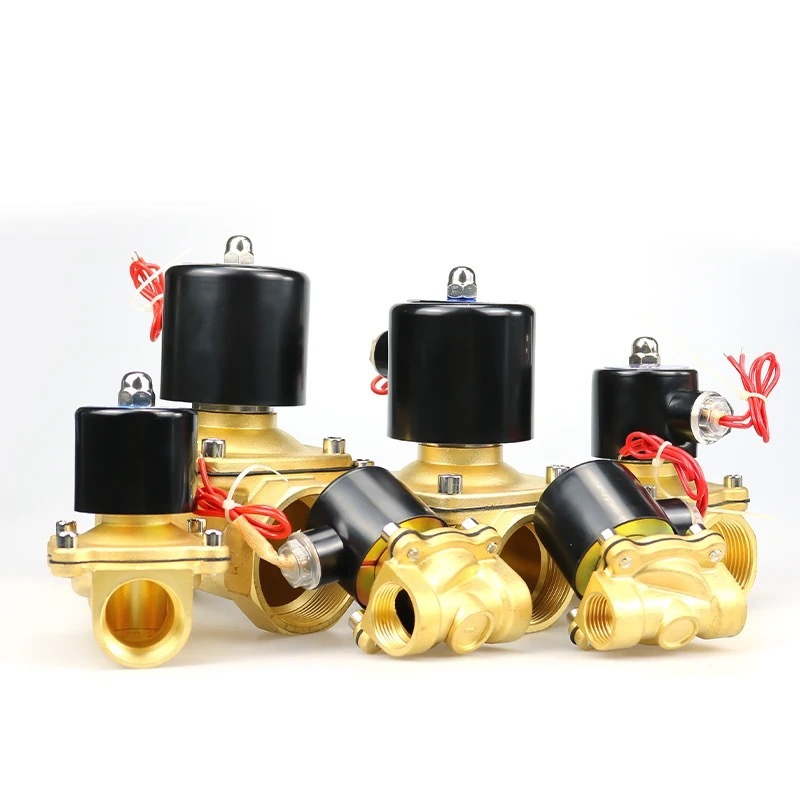

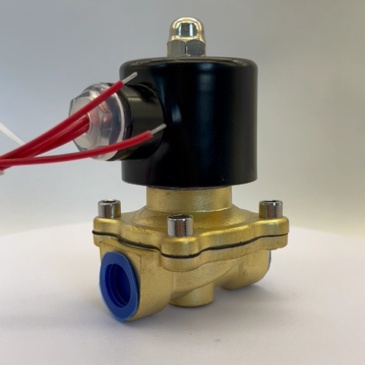

2W-NC threaded series two position two-way (normally closed) solenoid valve 3/8 "to 2"
Working medium: water, liquid, gas, light oil (viscosity ≤ 20cst)
Fluid temperature: -10~80 ℃ (NBR sealed)
Working pressure: 0-10bar
Working type: step-by-step direct action (normally closed)
Valve body material: brass, stainless steel SS304
Sealing material: NBR (-10~80 ℃)
Connection type: G thread, NPT thread, customizable Rc thread, can be equipped with steel flange to become flange connection
Working voltage: AC220-240V, AC110V50/60Hz, DC24/12V. IP65, H-level
DN10~20mm: AC220V 20VA, DC24V 20W, DN25mm: AC220V 40VA, DC24V 32W
DN32~50mm: AC220V 30VA, DC24V38W

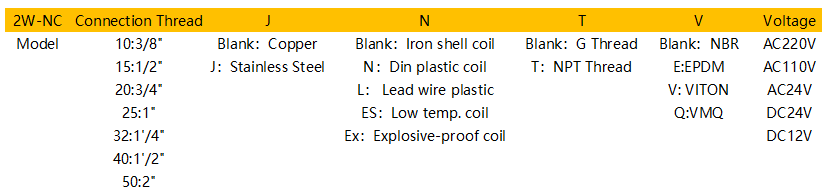

Example of ordering code:
If you order a 2W valve with 3/4 " connection thread, copper valve body, plastic sealed coil terminal type, G thread, NBR seal, working voltage AC220V, order code 2W-20N-AC220V.
If you order a 2W valve with 2 " connection threads, copper valve body, plastic sealed coil lead type, G thread, NBR seal, working voltage AC220V, order code 2W-50L-AC220V.
If you order a 2W valve with 1 " connection thread, stainless steel valve body, ES coil, NPT thread, VITON seal, working voltage AC220V, order code 2W-25JES-T-V-AC220V.

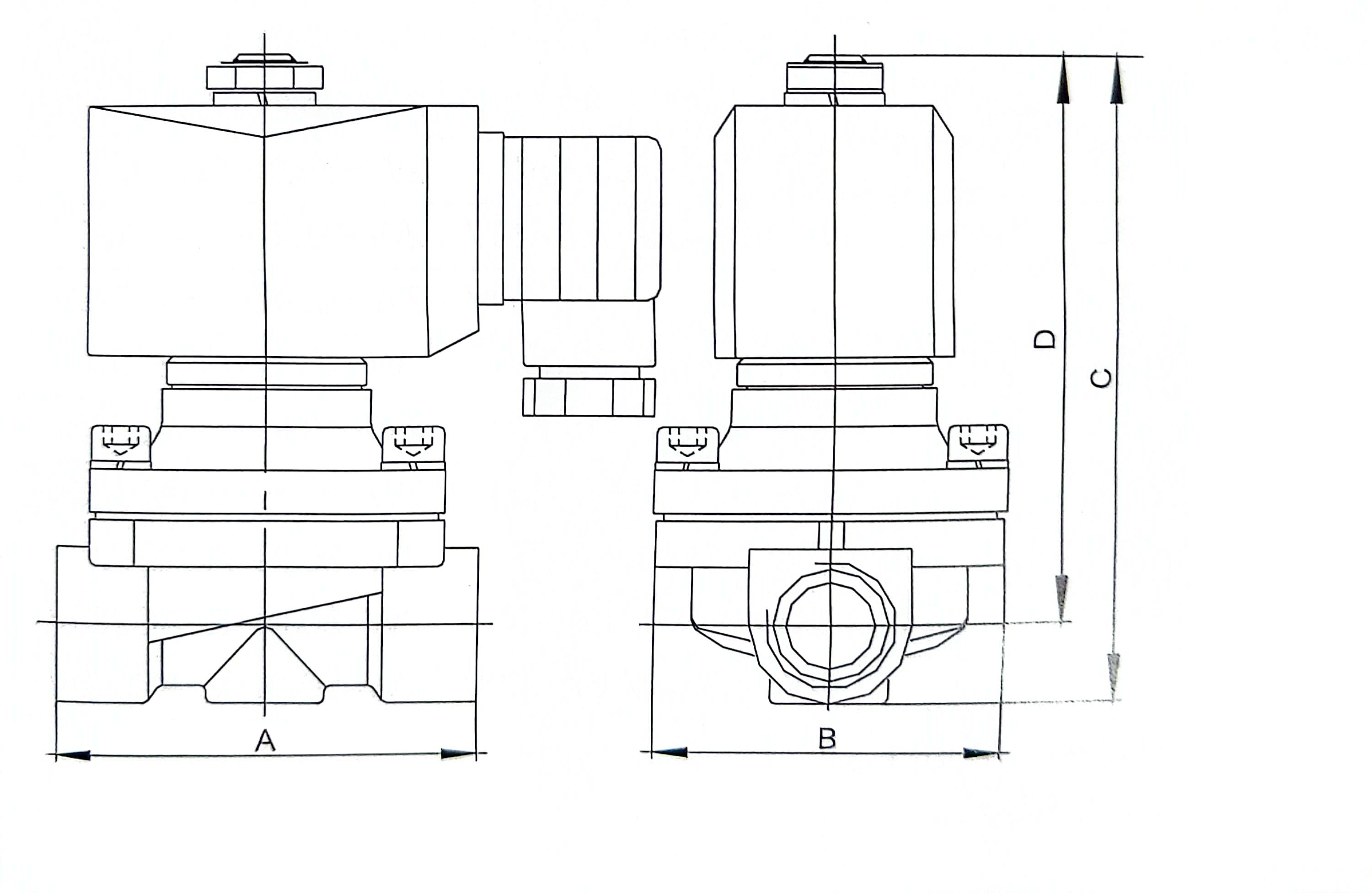

Structure diagram：

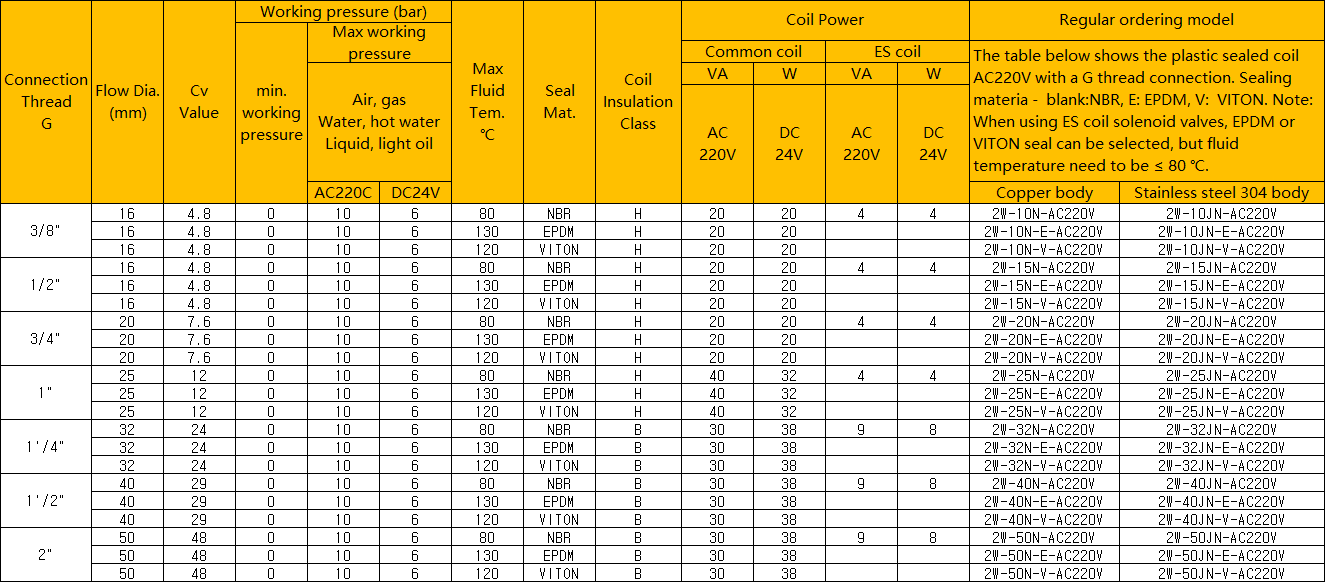

Specification Table:
