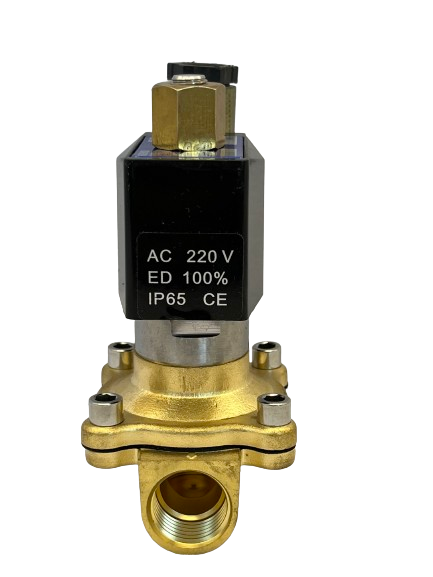

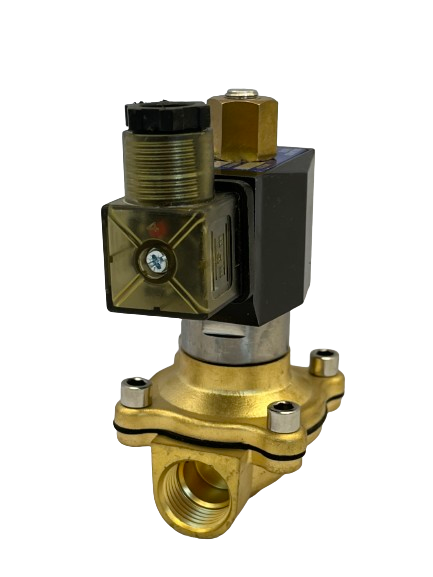

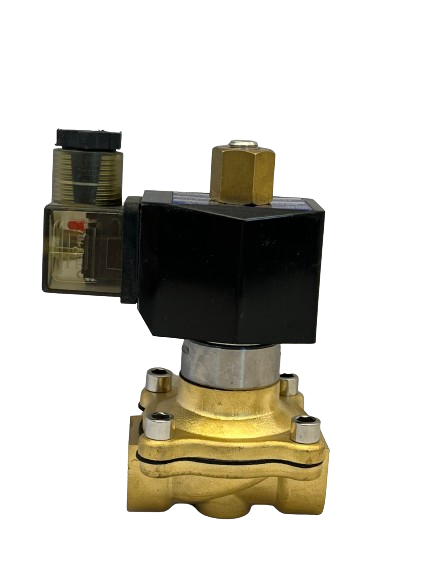

2W-NO threaded series two position two-way (normally open) solenoid valve 3/8 "to 2"
Working medium: water, liquid, gas, light oil (viscosity ≤ 20cst)
Fluid temperature: -10~80 ℃ (NBR sealed)
Working pressure: 0-6bar
Working type: step-by-step direct action (normally open)
Valve body material: brass, stainless steel SS304
Sealing material: NBR (-10~80 ℃)
Connection type: G thread, NPT thread, customizable Rc thread, can be equipped with steel flange to become flange connection
Working voltage: AC220-240V, AC110V 50/60Hz, DC24/12V. IP65, H-level
DN10~20mm: AC220V 20VA, DC24V 20W, DN25mm: AC220V 40VA, DC24V 32W
DN32~50mm: AC220V 30VA, DC24V 38W

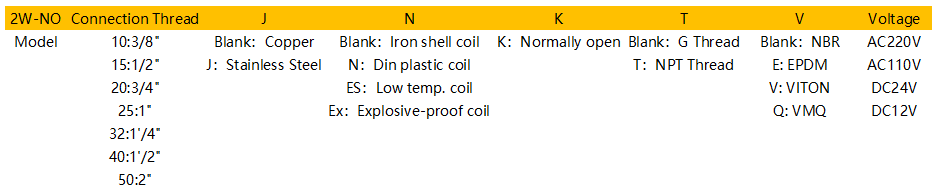

Example of ordering code:
If you order a 2W valve with 1/2 "interface thread, copper valve body, plastic sealed coil, normally open type, G thread, NBR seal, working voltage AC220V, order code 2W-15NK-AC2220V.
If you order a 2W valve with 2 "interface threads, stainless steel valve body, plastic sealed coil, normally open type, NPT thread, EPDM seal, working voltage AC220V, order code 2W-50JNK-T-E-AC220V.
.

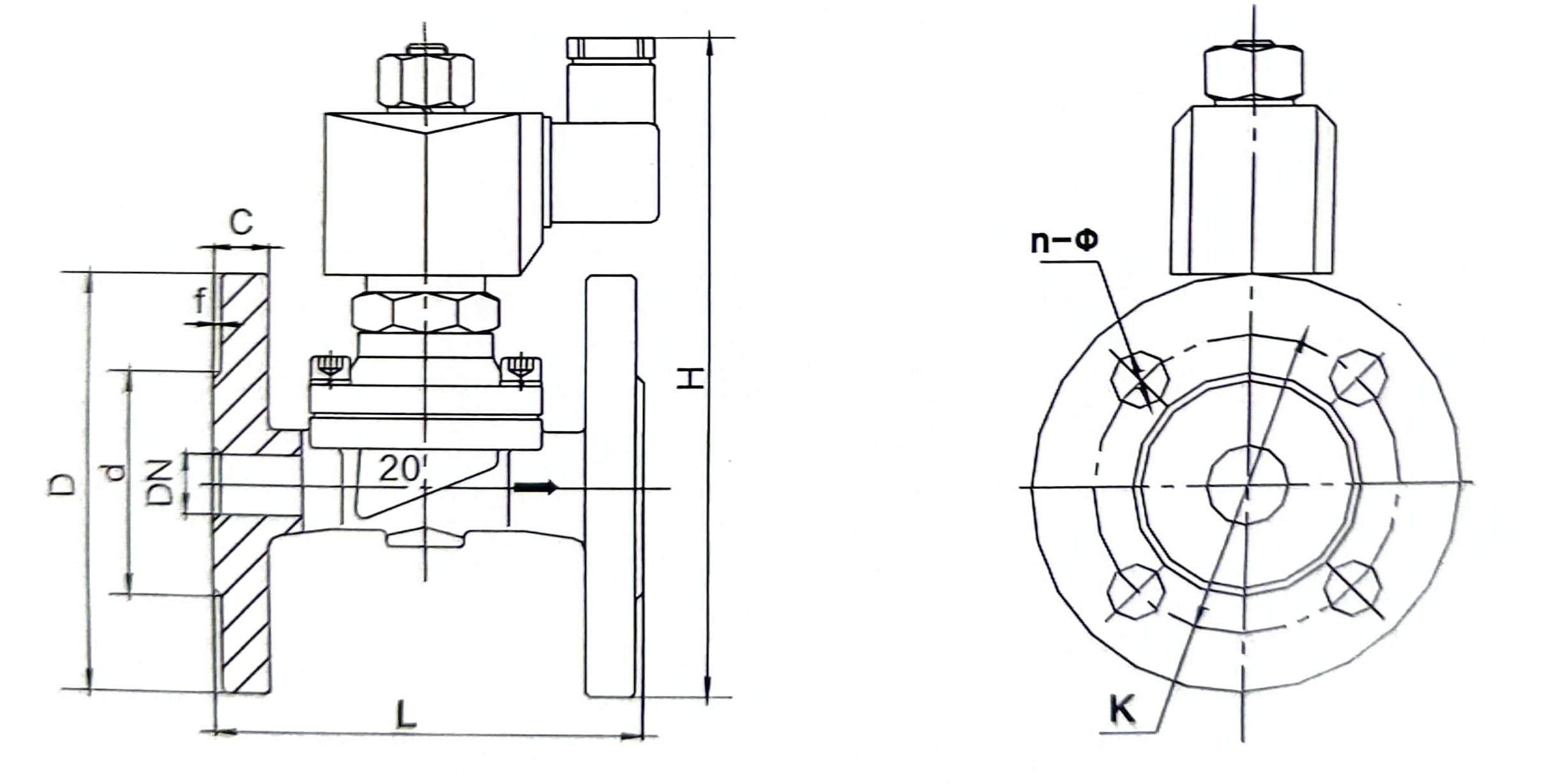

Structure diagram：

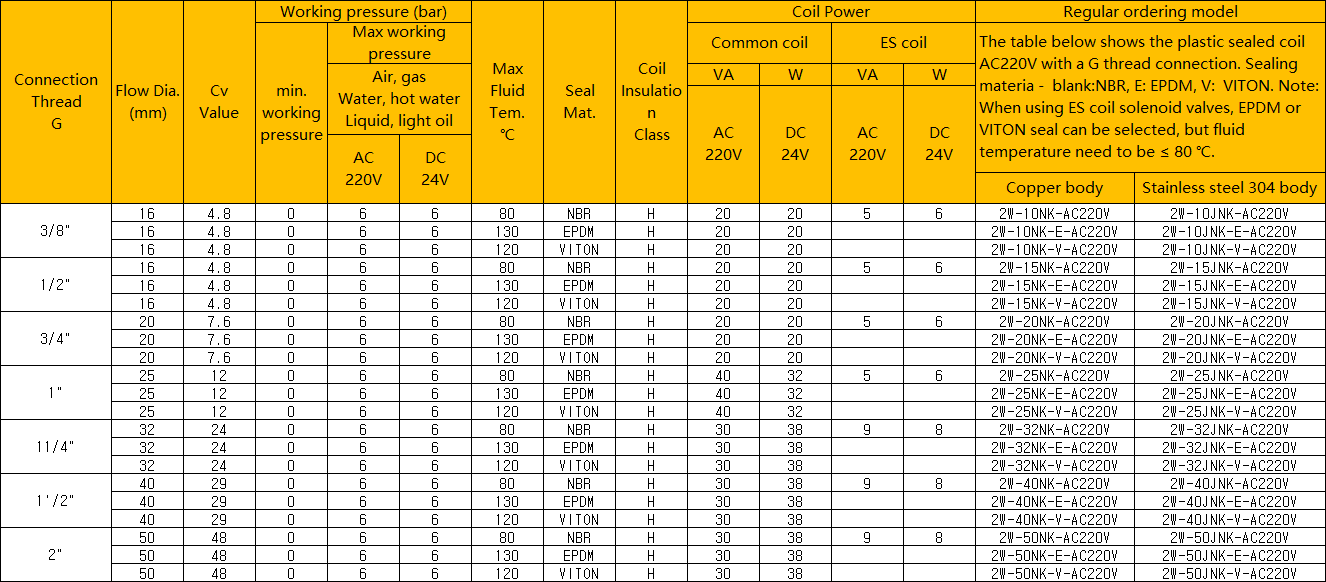

Specification Table:
