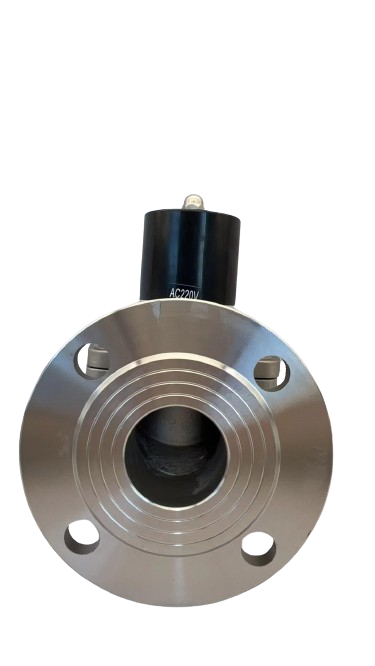

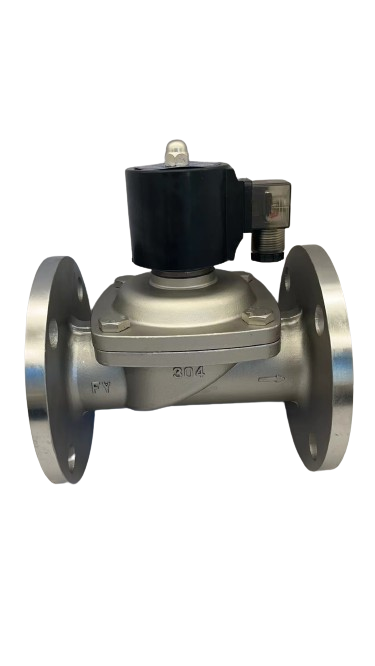

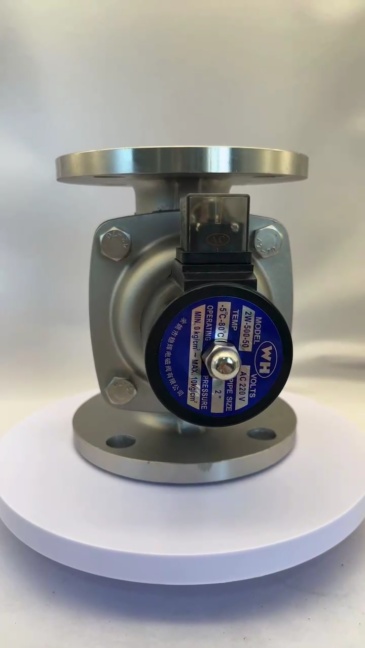

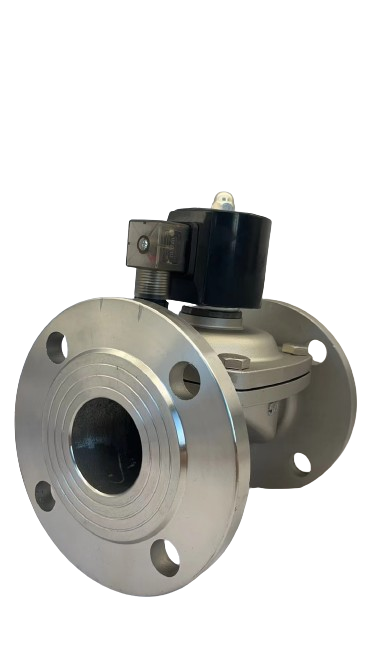

2WBF flange series two position two-way (normally closed) solenoid valve DN15-50mm
Working medium: water, liquid, gas, light oil (viscosity ≤ 20cst)
Fluid temperature: -10~80 ℃ (NBR sealed)
Working pressure: 0-10 bar (see specification parameter table for details)
Working type: step-by-step direct action (normally closed)
Valve body material: brass, stainless steel SS304, cast iron
Sealing material: NBR (-10~80 ℃)
Working voltage: AC220-240V, AC110V 50/60Hz, DC24/12V. IP65, H-level
DN10~20mm: AC220V 20VA, DC24V 20W, DN25mm: AC220V 40VA, DC24V 32W
DN32~50mm: AC220V 30VA, DC24V38W
Example of ordering code:
If you order 2W valve with flow diameter of 25mm, stainless-steel valve body, flange connection, plastic sealed coil terminal type, NBR sealing, working voltage AC220V, order code 2W-25JFN-AC220V.
If you order 2W valve with flow diameter of 40mm, copper valve body, flange connection, ES coil, NBR seal, working voltage AC220V, order code 2W-40FES-AC220V.

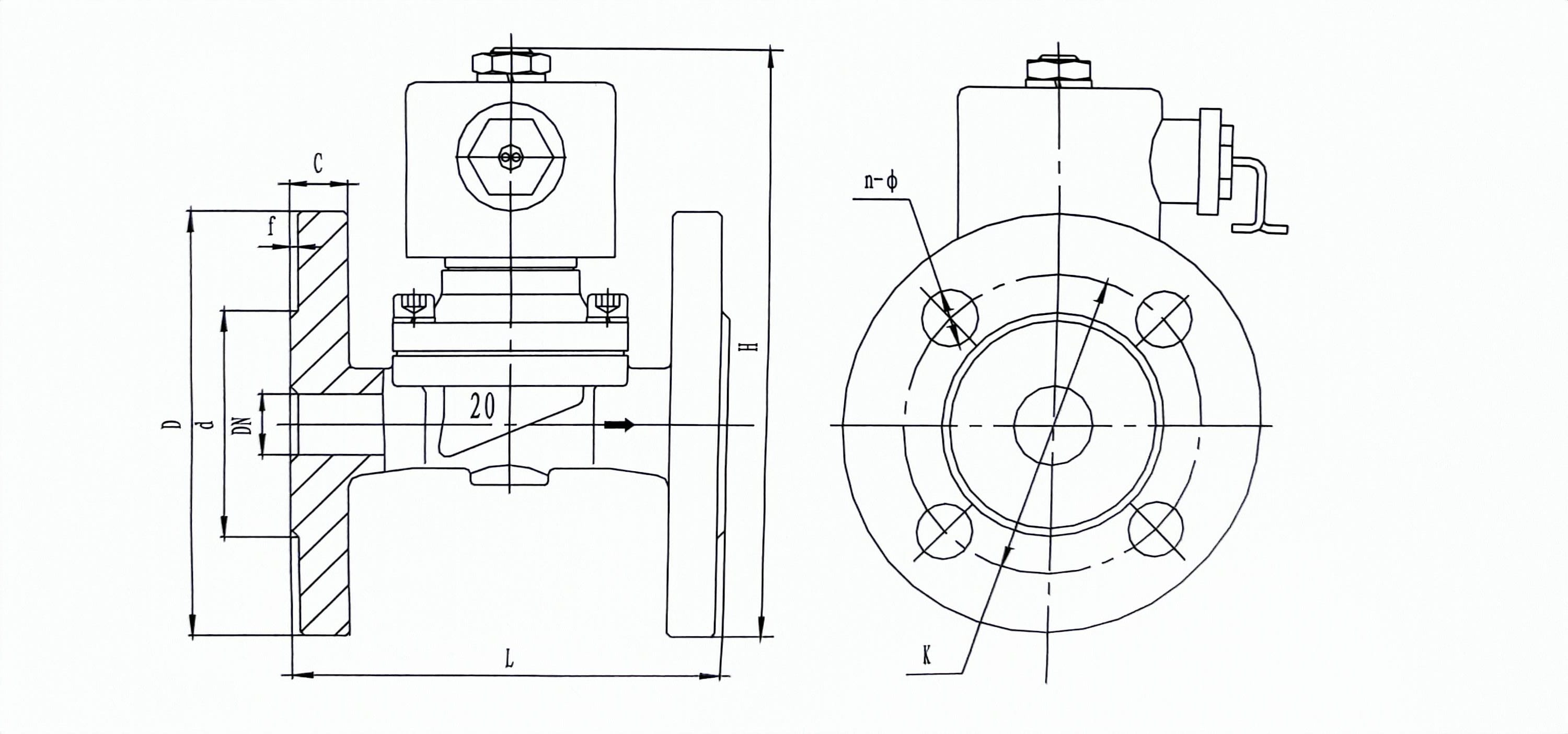

Structure diagram：

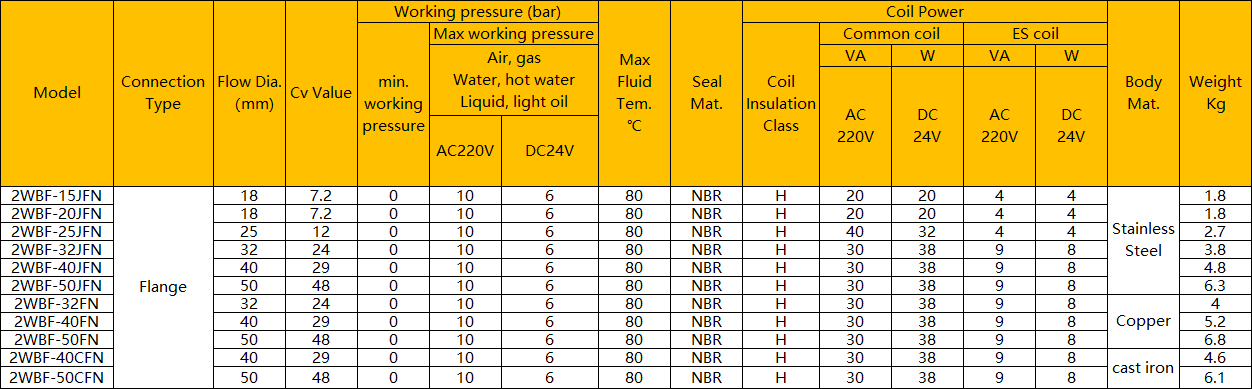

Specification table
